Building upon the legacy of its predecessors, the faster-than-ever Roadmachine 01 combines speed, comfort, and versatility, redefining the ultimate endurance rocket.
Crafted from our premium 01-grade carbon, it takes integration to the next level with sleek cable routing, down tube storage, and a seamlessly integrated rear light for maximum safety on long rides.
Engineered to accommodate larger tires and designed for maximum compliance, it smooths out rough roads while conserving your energy. Comfort has never been this fast.
Equipped with a full Shimano Ultegra groupset, a 4iiii power meter, our own CE 40 SL Carbon wheels, and an ICS2 stem paired with an Easton EC70 SL handlebar cockpit-combo, the Roadmachine 01 FOUR comes with a no-compromise build – a true high-performance endurance bike.

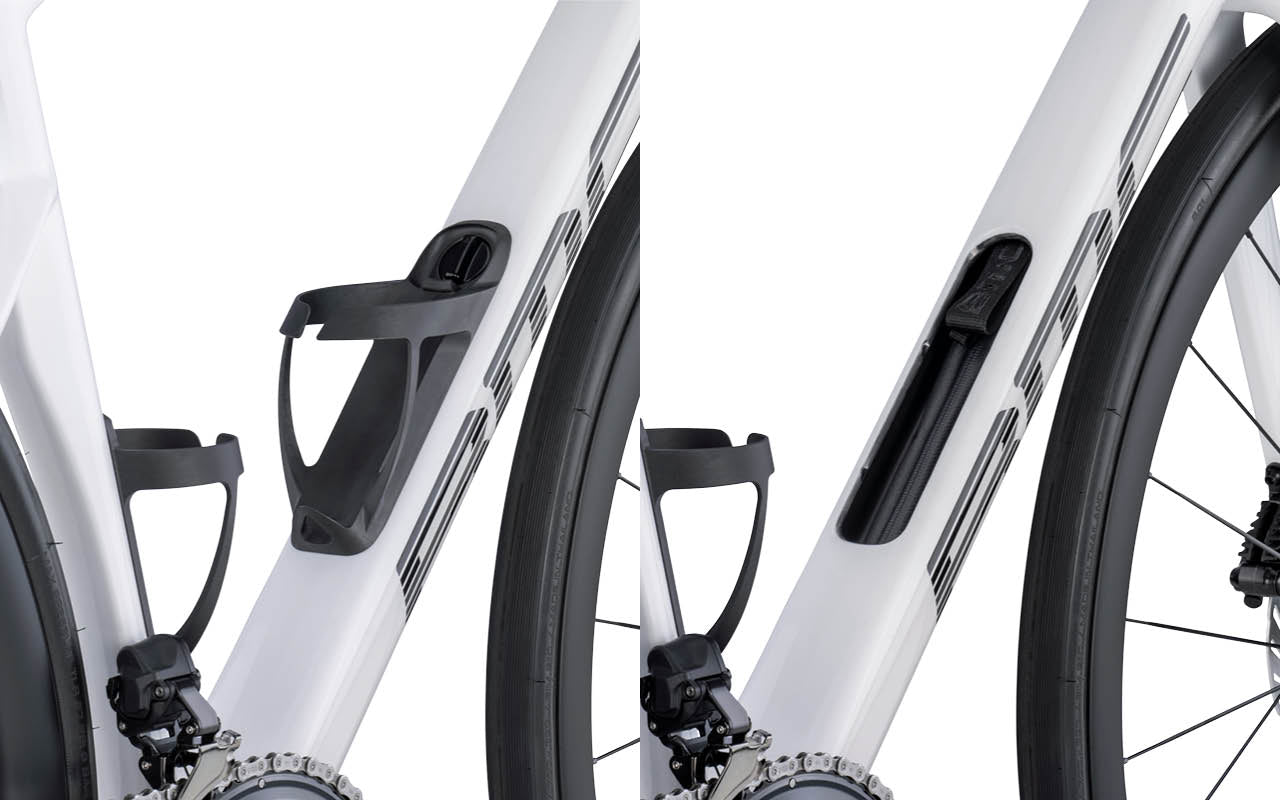

Downtube Storage with Integrated Bottle Cages
Building upon the legacy of its predecessors, the faster-than-ever Roadmachine 01 combines speed, comfort, and versatility, redefining the ultimate endurance rocket.
Crafted from our premium 01-grade carbon, it takes integration to the next level with sleek cable routing, down tube storage, and a seamlessly integrated rear light for maximum safety on long rides.
Engineered to accommodate larger tires and designed for maximum compliance, it smooths out rough roads while conserving your energy. Comfort has never been this fast.
Equipped with a full Shimano Ultegra groupset, a 4iiii power meter, our own CE 40 SL Carbon wheels, and an ICS2 stem paired with an Easton EC70 SL handlebar cockpit-combo, the Roadmachine 01 FOUR comes with a no-compromise build – a true high-performance endurance bike.

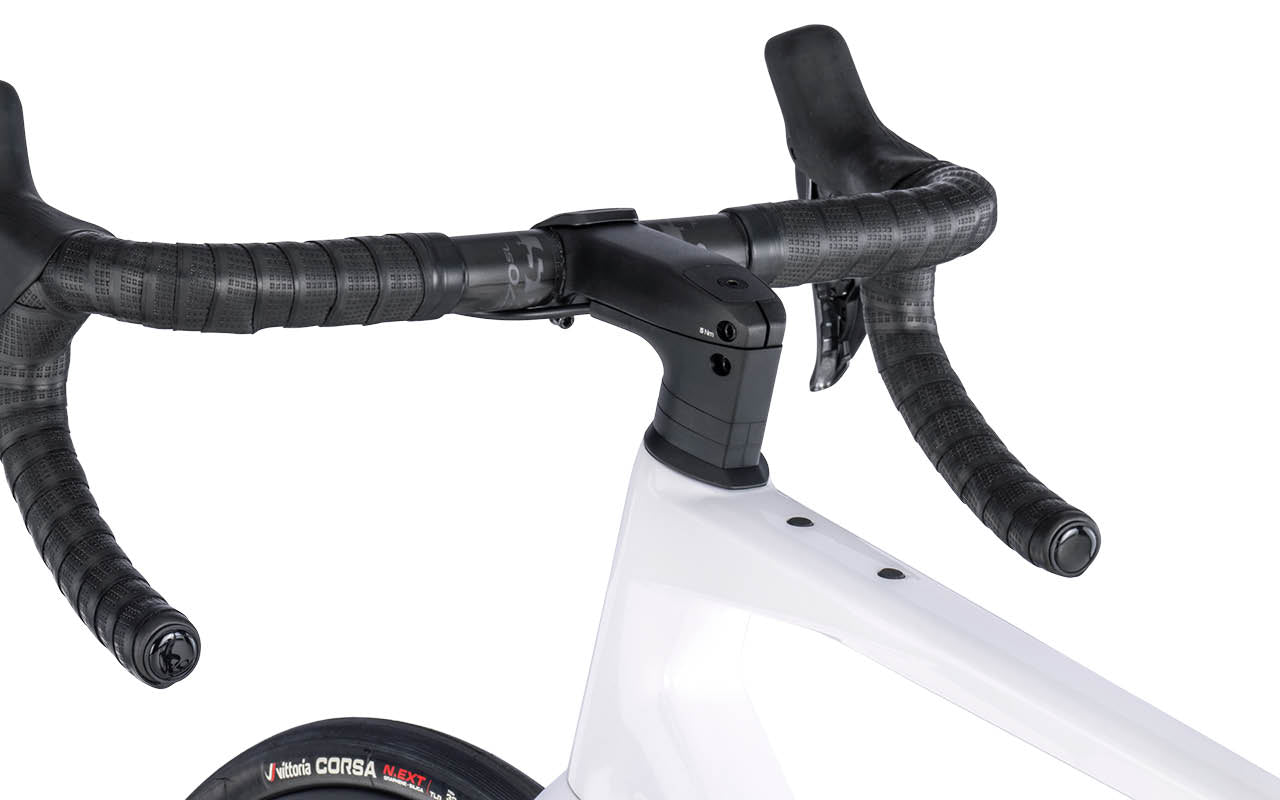

innovationICS2 Stem
The ICS2 stem is designed for complete stack and reach adjustability, allowing you to create the perfect position for your perfect ride. Bringing an incredibly low weight, high stiffness, stealth cable routing and further integration.

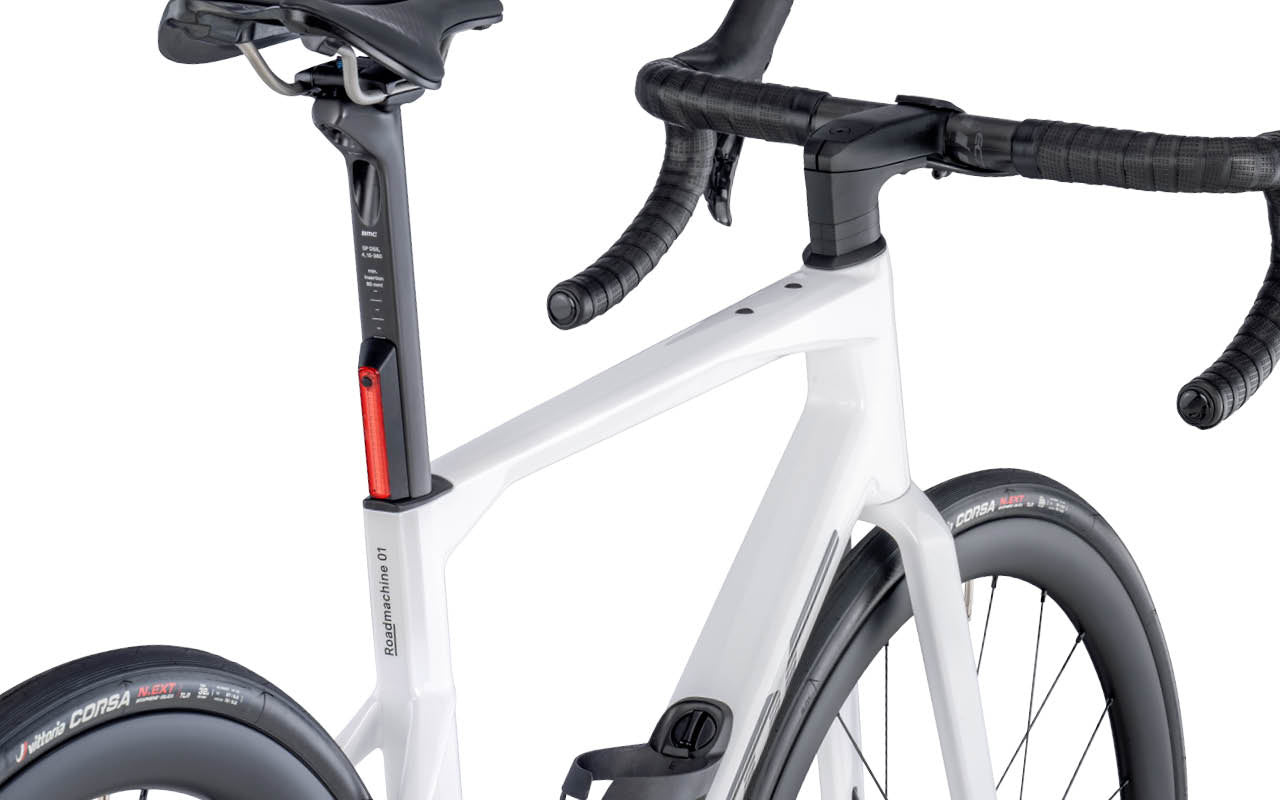

Integrated Rear Light
As you encounter traffic, tunnels and changing conditions, you need an ultra-compact, integrated rear light that’s USB chargeable and easily attached/detached from the seatpost.

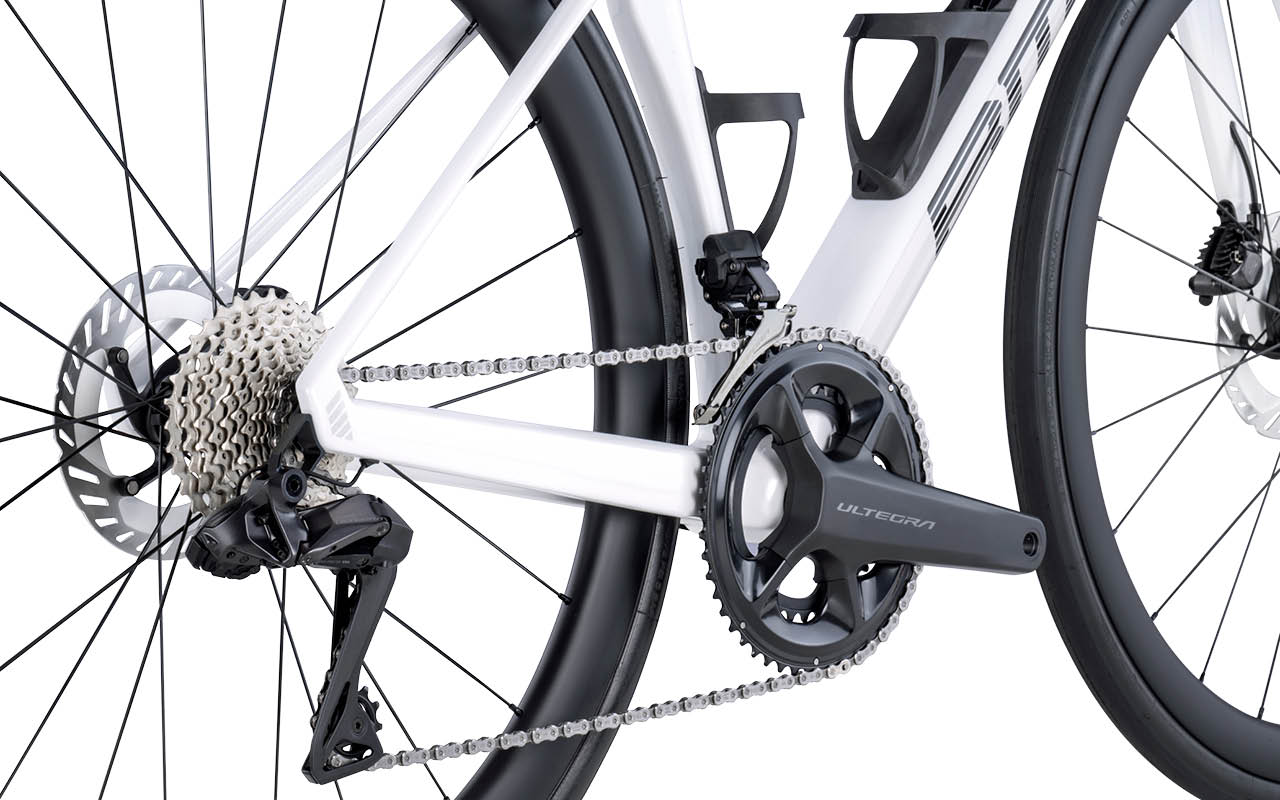

TCC Endurance
The Roadmachine takes our TCC Endurance vision further with big wheel capabilities, a dropped BB, adapted head tube angle, increased stack, and one of the industry’s smallest rear centers for a responsive ride.
Technical Overview
Frameset
Frame:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle
Fork:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology stealth cable routing | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset (Size 47-51) 45mm offset (Size 54-61)
Cockpit
Stem:
BMC ICS2 | Integrated Cockpit System Technology
Handlebar:
Easton EC70 SL Carbon | 125mm drop, 80mm reach, 4° flare
Seat
Seatpost:
Roadmachine 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Saddle:
Selle Italia Novus Boost Evo Superflow | TI316 Rail | 145mm
Drivetrain
Crankset:
SHIMANO Ultegra (FC-R8100)
Chainrings:
50-34T
Power Meter:
4iiii Precision Gen3+ Power Meter (Non-Drive Side)
Cassette:
SHIMANO Ultegra (CS-R8101)
Cassette Size:
11-34T
Chain:
SHIMANO CN-M8100
Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)
Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)
Shifters:
SHIMANO Ultegra Di2 (ST-R8170)
Gears:
2 x 12
Bottom Bracket:
SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)
Brakes
Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)
Rotors:
SHIMANO Ultegra (RT-CL800)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CE 40 SL Carbon | Tubeless Ready | 40mm
Hubs (F/R):
TXC-812 & TXC-240 Center Lock
Tires:
Vittoria Corsa N.EXT | Tubeless | 32mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Integrated Rear Light 25 | Roadmachine Bottle Cages | Storage Pouch
Additional Information
Tire Clearance:
up to "40mm measured" (frameset clearance) but limited to "34mm measured" by the front derailleur
Weight without Pedals:
8.0kg | Size 54 as pictured with all accessories
ASTM Classification:
Level 2
System Weight Limit:
110kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <160 | 158-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 370 | 379 | 383 | 388 | 393 | 398 |
| Stack | 525 | 550 | 570 | 595 | 620 | 645 |
| Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach | 80 | 80 | 80 | 80 | 80 | 80 |
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| BB Drop | 75 | 75 | 75 | 75 | 75 | 75 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 379 | 379 | 379 | 379 | 379 | 379 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center | 579 | 596 | 594 | 607 | 620 | 633 |
| Head Tube | 112 | 138 | 154 | 181 | 207 | 233 |
| Head Tube Angle | 71.4° | 71.4° | 72.2° | 72.2° | 72.2° | 72.2° |
| Rear Center | 415 | 415 | 415 | 415 | 415 | 415 |
| Seat Angle | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° |
| Seat Tube | 414 | 461 | 488 | 508 | 529 | 550 |
| Seatpost Length | 280 | 320 | 360 | 360 | 400 | 400 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 726 | 762 | 786 | 807 | 828 | 849 |
| Stem Angle | -12.5 | -12 | -12.5 | -12.5 | -12.5 | -12.5 |
| Stem Length | 80 | 90 | 100 | 100 | 110 | 110 |
| Top Tube | 520 | 537 | 546 | 559 | 571 | 581 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 982 | 1000 | 997 | 1010 | 1023 | 1036 |
