Technical Overview
Frameset
Frame:

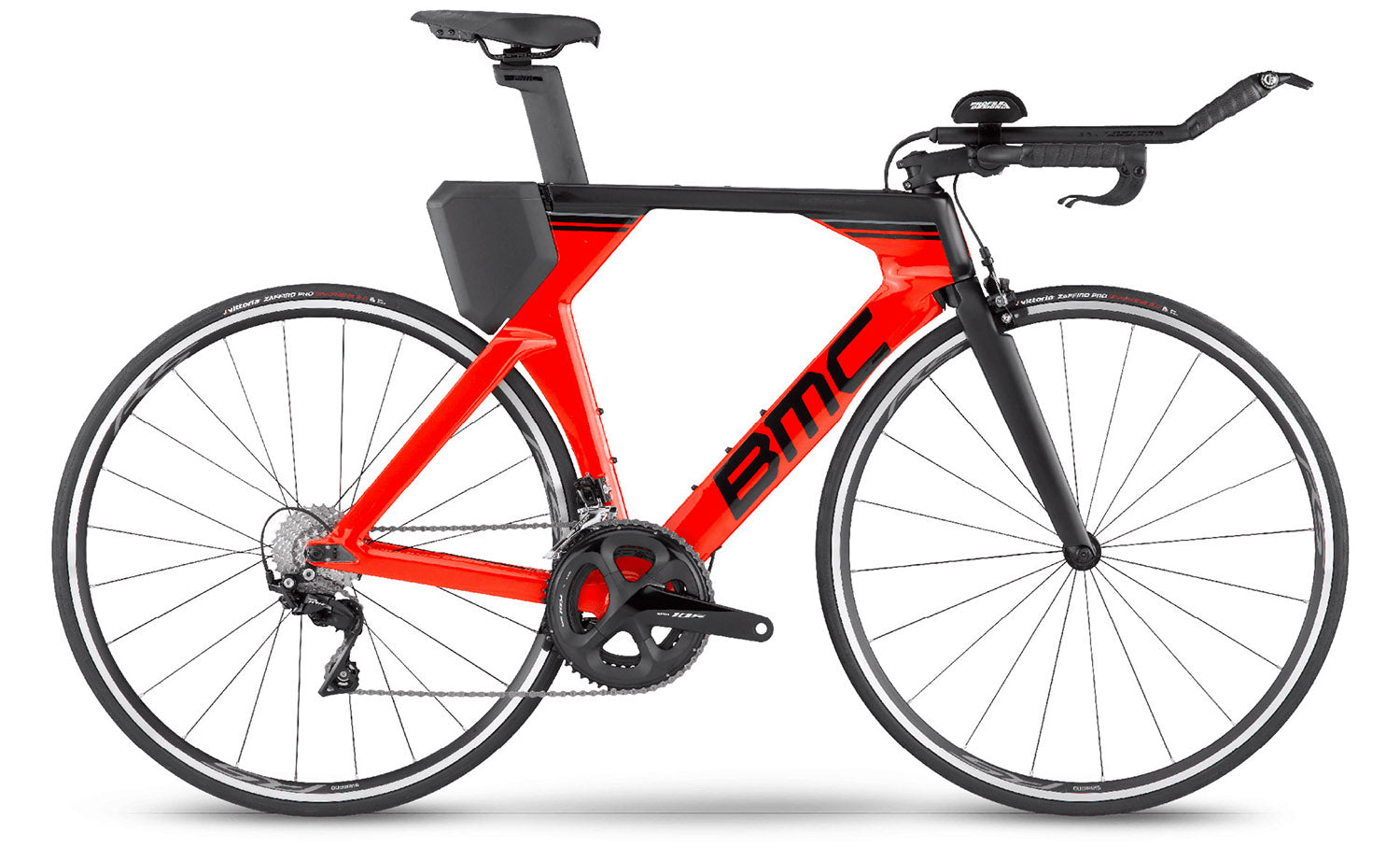

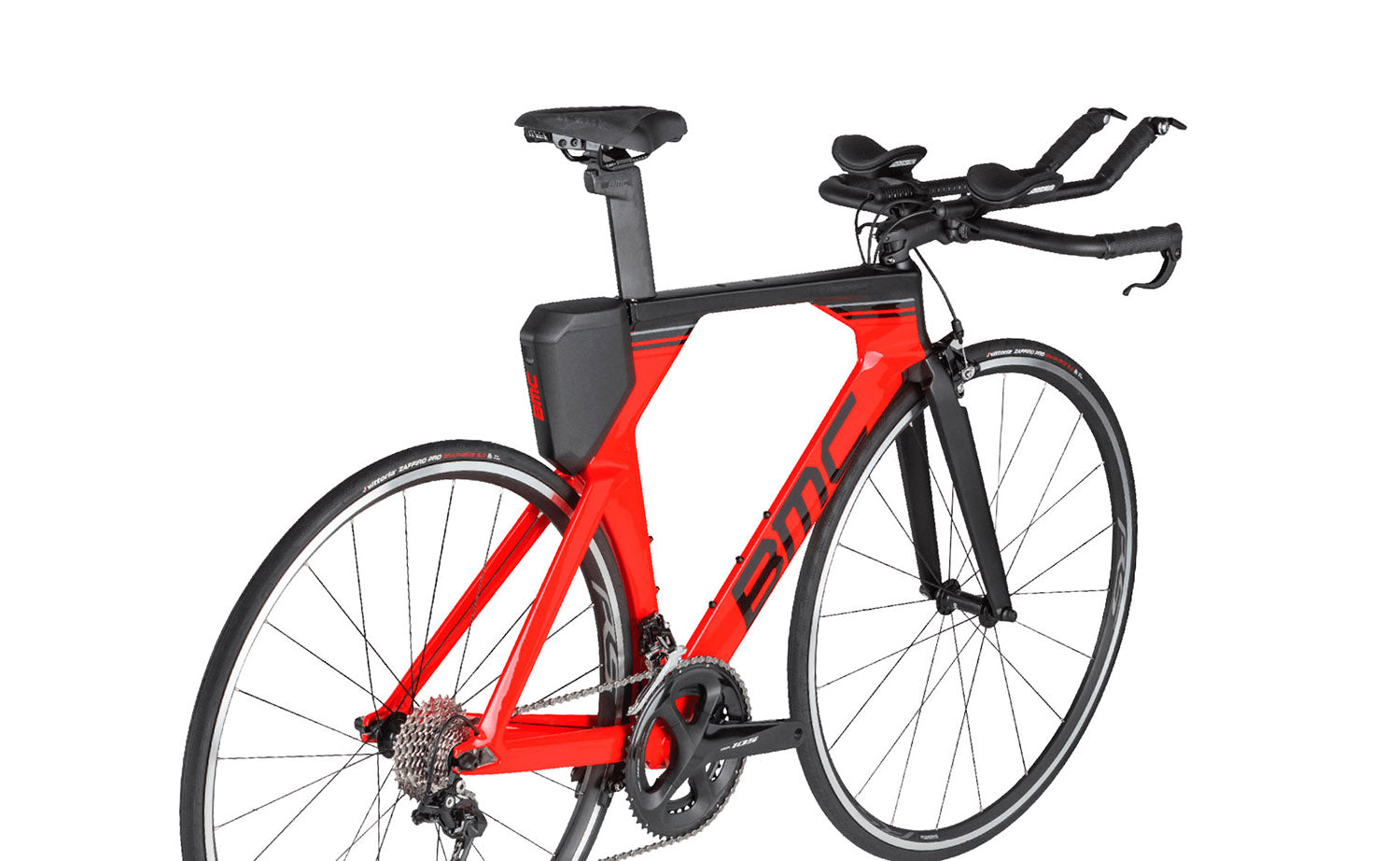

Timemachine Carbon with Vmax Aero Design and P2P Positioning SyStem | P2P Dual-Mount Aeropost Configuration | Internal Di2 Battery Mount | Rear Storage Box | Sliding Dropouts
Fork:
Timemachine Carbon with Vmax Aero Design Hinge Design
Cockpit
Stem:
BMC RSM 01
Handlebar:
Profile WING 10a Basebar | Sonic Ergo 35A Aerobar
Seat
Seatpost:
Timemachine Carbon V-Max Aero Seatpost | 62mm Offset adjustment | P2P Dual-Mount Aeropost Configuration | Triathlon & Time Trial
Saddle:
Fizik Mistica Mg
Drivetrain
Crankset:
SHIMANO 105 (FC-R7000)
Chainrings:
53-39T
Cassette:
SHIMANO 105 (CS-R7000)
Cassette Size:
11-30T
Chain:
SHIMANO HG601
Front Derailleur:
SHIMANO 105 (FD-R7000)
Rear Derailleur:
SHIMANO 105 (RD-R7000)
Shifters:
SHIMANO Dura Ace (SL-BSR1) Bar End
Gears:
2 x 11
Bottom Bracket:
PF86 Bottom Bracket
Brakes
Brake Levers / Calipers:
SHIMANO 105 (BR-R7010) Direct Mount
Rotors:
Rotor Size (F/R):
Wheels
Rims:
SHIMANO WH-RS100 | 24mm
Hubs (F/R):
SHIMANO WH-RS100
Tires:
Vittoria Zaffiro Pro | 25mm
Accessories
In the Box:
Aerocore Bottle Cages
Additional Information
Tire Clearance:
27mm
ASTM Classification:
Level 1
System Weight Limit:
110kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | S | S-M | M-L | L |
|---|---|---|---|---|
| Rider Height | <170 | 172-180 | 178-188 | 186-196 |
| Reach | 393 | 377 | 418 | 442 |
| Stack | 480 | 515 | 515 | 556 |
| Bar Reach | 160 | 160 | 160 | 160 |
| Bar Width | 400 | 420 | 420 | 420 |
| BB Drop | 58 | 68 | 68 | 68 |
| Crank Length | 165 | 170 | 170 | 172.5 |
| Fork Length | 374 | 374 | 374 | 374 |
| Fork Rake | 45 | 45 | 45 | 45 |
| Front Center | 580 | 578 | 619 | 649 |
| Head Tube | 97 | 111 | 111 | 153 |
| Head Tube Angle | 71.5 | 71.5 | 71.5 | 71.5 |
| Rear Center | 393-404 | 393-404 | 393-404 | 393-404 |
| Saddle Height Range | 630 - 780 | 660 - 850 | 660 - 850 | 700 - 880 |
| Seat Angle | 71.5 - 80.8 | 71.5 - 80.8 | 71.5 - 80.8 | 71.5 - 80.8 |
| Seat Tube | 495 | 550 | 550 | 592 |
| Seatpost Offset | 27 / 9 / -9 / -27 | 27 / 9 / -9 / -27 | 27 / 9 / -9 / -27 | 27 / 9 / -9 / -27 |
| Standover Height | 755 | 797 | 797 | 838 |
| Stem Angle | ±8 | ±8 | ±8 | ±8 |
| Stem Length | 90 | 90 | 100 | 110 |
| Trail | 60 | 60 | 60 | 60 |
| Wheelbase | 964 | 967 | 1008 | 1038 |
