Descripción técnica
Cuadro
Cuadro:

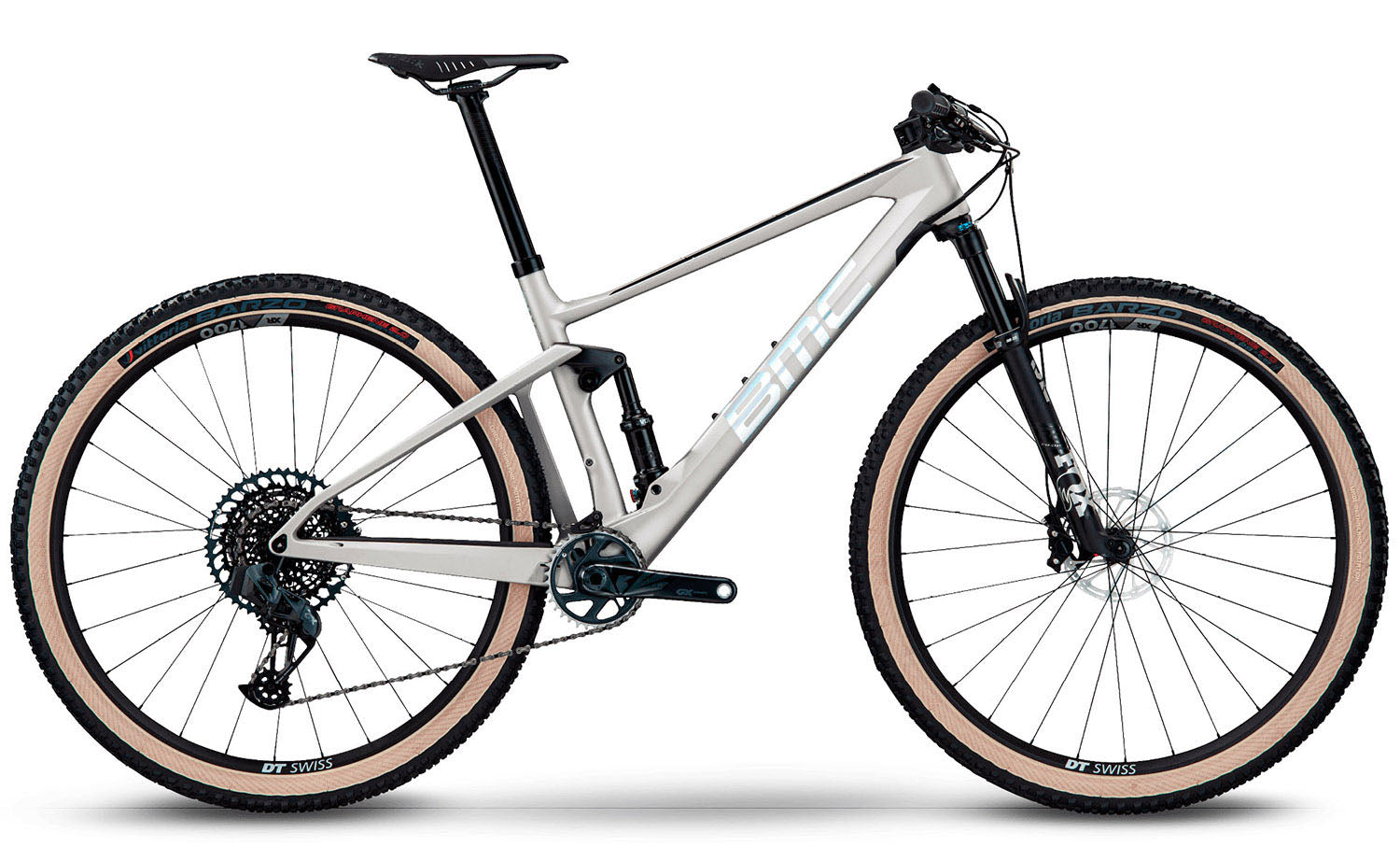

Fourstroke 01 Premium Carbon with APS Suspension System 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Horquilla:
Suspensión
Suspensión Delantera:
Fox Float 32 SC Performance Elite
Suspensión Trasera:
Fox Float DPS Performance Elite
Bloqueo Remoto:
Cockpit
Potencia:
#spec_stem
Manillar:
BMC MFB 01 Carbon | 760mm
Puños:
Seat
Tija de Sillín:
BMC RAD | Integrated Dropper Seatpost | 80mm Dropt
Sillín:
Fizik Antares R7
Transmisión
Platos y Bielas:
SRAM GX Eagle Carbon
Platos:
34T
Potenciómetro:
Cassette:
SRAM GX Eagle
Tamaño del cassette:
10-52T
Cadena:
SRAM GX Eagle
Desviador Delantero:
Cambio Trasero:
SRAM GX Eagle AXS
Manetas de Cambio:
SRAM AXS Controller
Marchas:
1 x 12
Pedalier:
PF92 Bottom Bracket
Frenos
Pinzas de Freno:
SRAM Level TLM
Discos:
SRAM Centerline Rotors
Tamaño del disco:
160 / 160 S-M | 180 / 160 L-XL
Ruedas
Llantas:
DT Swiss XR 1700 | 25mm Inner Width
Bujes:
DT Swiss 350 Straightpull | Ratchet 36 SL
Neumáticos:
Vittoria Barzo | 2.25"
Información Tubeless:
Información adicional
Paso de rueda:
58mm
Clasificación ASTM:
Level 3
Límite de peso del sistema:
110kg
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | <172 | 172-182 | 180-188 | >188 |
| Reach | 423 | 445 | 465 | 485 |
| Stack | 580 | 590 | 600 | 615 |
| Bar Rise | 4 | 4 | 4 | 4 |
| Bar Sweep | 8 | 8 | 8 | 8 |
| Bar Width | 760 | 760 | 760 | 760 |
| BB Drop | 44 | 44 | 44 | 44 |
| Crank Length | 170 | 175 | 175 | 175 |
| Fork Length | 506 | 506 | 506 | 506 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Front Center | 700 | 726 | 750 | 777 |
| Head Tube | 96 | 107 | 117 | 134 |
| Head Tube Angle | 67.5 | 67.5 | 67.5 | 67.5 |
| Rear Center | 429 | 429 | 429 | 429 |
| Seat Angle | 75.6 | 75.6 | 75.6 | 75.6 |
| Seat Tube | 420 | 440 | 480 | 510 |
| Seatpost Drop | 80 | 80 | 80 | 80 |
| Standover Height | 738 | 747 | 759 | 768 |
| Stem Angle | -5 | -5 | -5 | -5 |
| Stem Length | 50 | 60 | 60 | 70 |
| Top Tube | 582 | 607 | 630 | 654 |
| Trail | 106.5 | 106.5 | 106.5 | 106.5 |
| Wheelbase | 1129 | 1155 | 1180 | 1206 |
